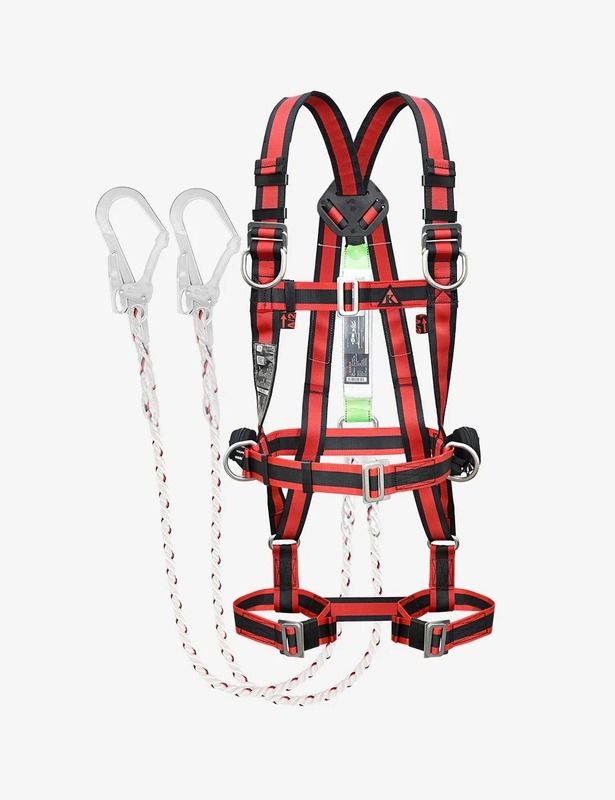

The KARAM PN18(H)(WB)(351)(000_131)(1.8M)(STS01N) Full Body Safety Harness is a complete work-at-height fall-protection solution designed especially for professional tower climbing and demanding industrial applications.

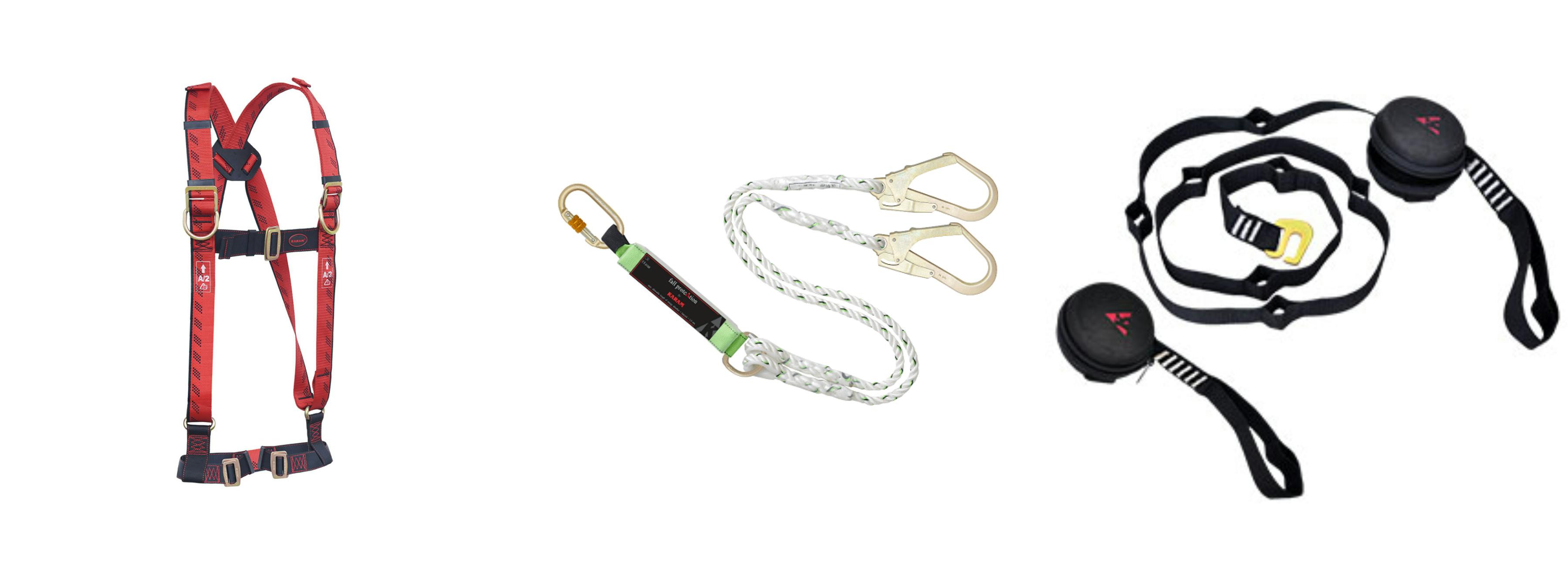

This configuration combines the KARAM PN18 E-Con Full Body Harness, a PN351 1.8-meter forked lanyard with energy absorber, and an STS01N Suspension Intolerance Strap, providing the worker with an integrated safety system for working at height.
Full Body E-Con Harness for Tower Climbing
The KARAM PN18 is designed for professional tower-climbing applications where workers require secure attachment while maintaining sufficient freedom of movement.
The harness incorporates both dorsal and sternal attachment points, providing appropriate connection locations for fall-protection equipment.
Dorsal & Sternal Attachment Points
The harness features:
- Two chest attachment D-rings
- One dorsal attachment D-ring
The dorsal D-ring is positioned on the back for fall-arrest connection, while the chest attachment points provide additional connection options for appropriate climbing and fall-protection systems.
Adjustable Harness Design
To provide a secure and comfortable fit, the PN18 offers adjustment at the:
- Shoulder straps
- Chest strap
- Thigh straps
This multi-point adjustability allows the harness to be correctly fitted to the worker before beginning work-at-height operations.
PN351 1.8M Forked Lanyard
A major advantage of this complete configuration is the included PN351 Forked Lanyard.
The lanyard has a working length of 1.8 meters and uses a twin-leg/forked configuration.
The two-leg design allows the worker to move between suitable anchor points while maintaining continuous connection when the correct transfer procedure is followed.
Integrated Energy Absorber
The PN351 lanyard incorporates an energy absorber.
During a fall-arrest event, the energy absorber is designed to deploy and help manage the forces transmitted to the worker and fall-protection system.
This is an essential feature for professional work-at-height applications where a fall hazard is present.
STS01N Suspension Intolerance Strap
The package also includes the KARAM STS01N Suspension Intolerance Strap.
After a fall is arrested, a worker may remain suspended in the harness while awaiting rescue. The suspension strap is designed to provide support that can help reduce the negative effects associated with prolonged suspension.
The STS01N is therefore an important supplementary safety component for work-at-height operations.
Comfortable Sit Strap
The PN18 incorporates an ergonomically positioned sit strap designed to improve wearer comfort.
Straight thigh straps and adjustable webbing further help provide a more comfortable fit during extended work-at-height operations.
Heavy-Duty Polyester Webbing
The harness is manufactured from durable polyester webbing.
KARAM uses heavy-duty webbing with automatic computerized stitching to provide consistent construction and dependable performance for professional industrial applications.
Fall Indicator
A built-in fall indicator assists workers and safety personnel during routine equipment inspections.
If the harness has been subjected to a significant fall event, the indicator can help identify that the equipment requires inspection and appropriate action before further use.
100 kg Listed Harness Capacity
KARAM lists the harness with a 100 kg weight capacity for this configuration.
The harness itself weighs approximately 1.34 kg, while the supplied lanyard is listed at approximately 2 kg.
