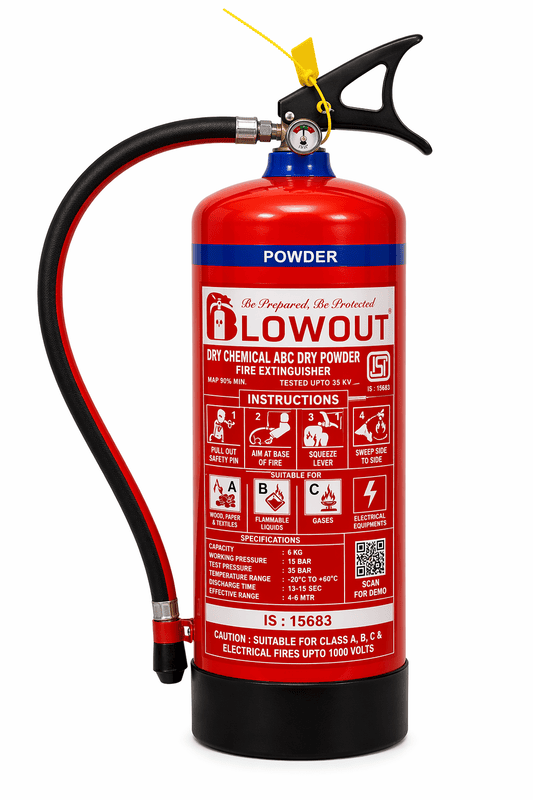

ABC TYPE FIRE EXTINGUISHER

The ABC Type Fire Extinguisher is a multipurpose dry chemical powder extinguisher designed to tackle a wide range of fire hazards. It is one of the most commonly used extinguishers because of its ability to handle Class A (solid materials like wood and paper), Class B (flammable liquids such as petrol and oil), and Class C (flammable gases like LPG) fires, along with electrical fires.

The extinguisher is filled with Mono Ammonium Phosphate (MAP) powder, which acts by forming a protective layer over the burning material and interrupting the chemical chain reaction of fire, effectively stopping combustion.

These extinguishers are typically stored pressure type, meaning they are pre-pressurized with nitrogen gas and ready for instant use. They come with features such as a pressure gauge, safety pin, discharge hose (for higher capacities), and mounting bracket for easy installation and monitoring.

🔧 Typical Technical Specifications

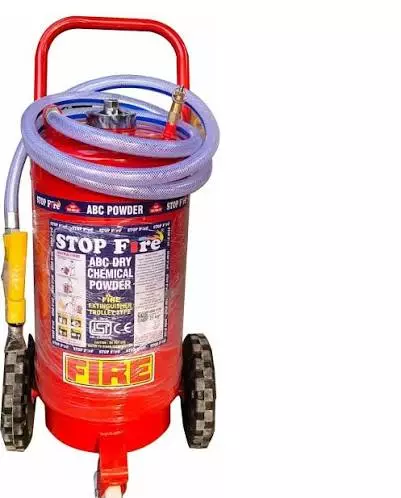

• Capacity: 2kg, 4kg, 6kg, 9kg (portable) & 25kg+ (trolley)
• Discharge Time: ~8–20 seconds (depending on size)
• Range: ~2–5 meters
• Operating Temperature: -20°C to +55°C
• Fire Rating: Varies (e.g., 2A/13B to 6A/34B+)

The body is made from high-quality mild steel with powder coating, ensuring durability, corrosion resistance, and long service life. Most models comply with BIS standard IS 15683, ensuring safety and reliability.
