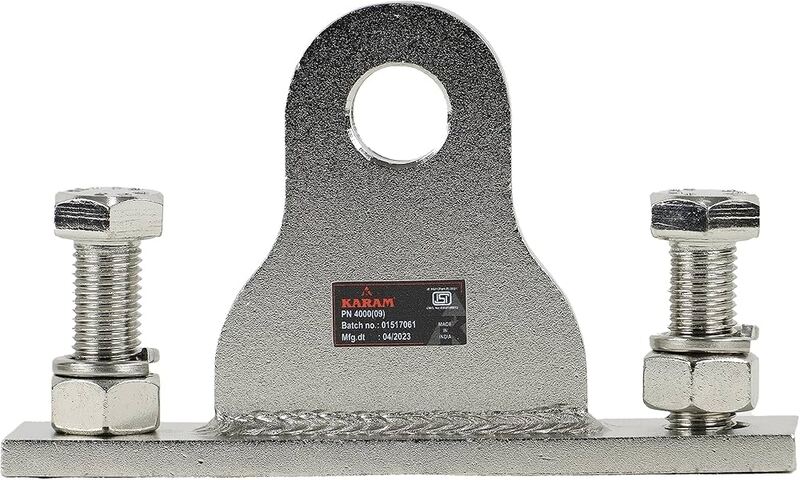

Karam PN-4000(38) Universal Extrimity Plate
ey Features
- MOC: ED coated black alloy steel/stainless steel 316
- Anchor post designed to be fixed to install a horizontal lifeline
- Available lengths: 300.0mm, 500.0mm and 750.0mm
Conforms to EN 795:2012 Type A TS 16415:2013 (for upto 4 users), Certified to AS/NZS 5532:2013
₹3,375.00 ₹6,450.00
Product Details
Anchor posts are sturdy, permanent or semi-permanent structures installed on the rooftop or elevated area. These posts serve as secure attachment points for the horizontal lifeline and other components of the fall protection system. Anchor posts are designed to withstand the forces generated during a fall and provide a reliable connection for workers' PFAS.
Warranty: 1 year from the date of invoice against any manufacturing defects.
Ideal for use
Horizontal Lifeline
Rooftops
Work at Height
Fall Protection
Maintenance
Construction
Product Specifications
| Material | Alloy steel |
| Finish | ED coated |
| Breaking Strength | 15kN |
| Min Flange Width | 150mm |
| Max Flange Width | 220mm |
| Available Length and Weight | 300.00mm: 18.30kg; 500.00mm: 20.07kg; 750.00mm: 22.15kg |
