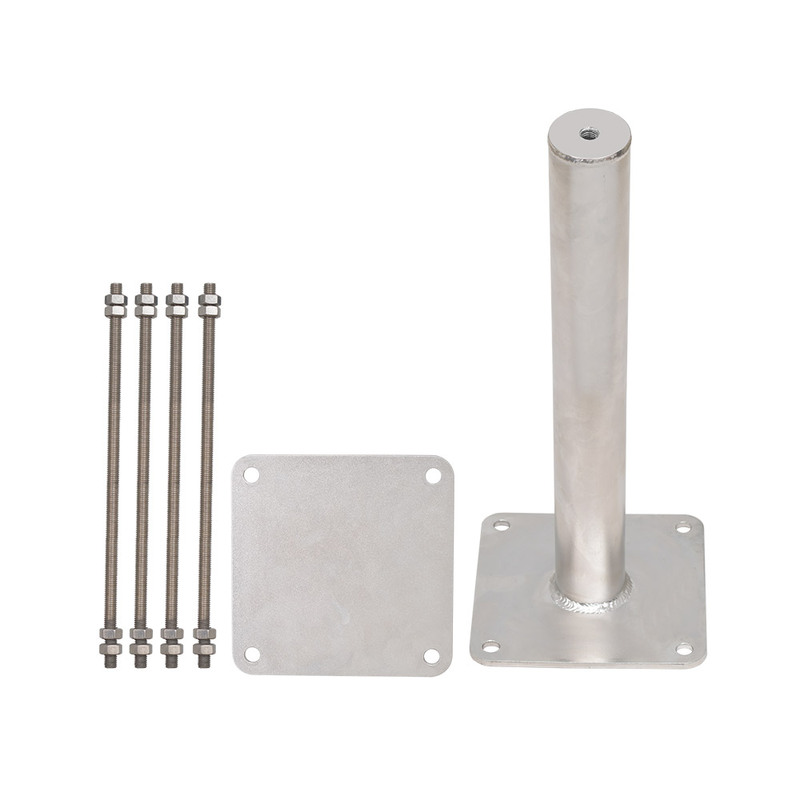

KARAM SA111(500) ANCHOR POST

KARAM SA111 (500) Anchor Post is a fixed anchorage device designed to provide a strong and reliable attachment point for fall protection systems. It is primarily installed on metal I-beams to support horizontal lifeline systems, ensuring safe working conditions at height in industrial and construction environments.

Manufactured from high-strength alloy steel, the anchor post offers excellent durability and resistance to heavy loads and harsh working conditions. Its robust construction allows it to withstand the forces generated during a fall, making it a dependable component in a complete personal fall arrest system (PFAS).

The anchor post features an adjustable base, which enables it to fit different I-beam sizes (typically ranging from 150 mm to 220 mm flange width). This flexibility makes it suitable for a wide range of structural applications. It is designed for easy and quick installation using standard nut and bolt arrangements (M12), allowing efficient setup on-site.

Additionally, the post is equipped with a tapped bush (M16) to allow attachment of connectors such as swivel D-rings or eye bolts, providing a secure connection point for lifelines and lanyards.

With a minimum breaking strength of around 23 kN and compliance with EN 795:2012 Type A standards, the KARAM SA111 (500) ensures high safety, reliability, and performance in work-at-height applications.
