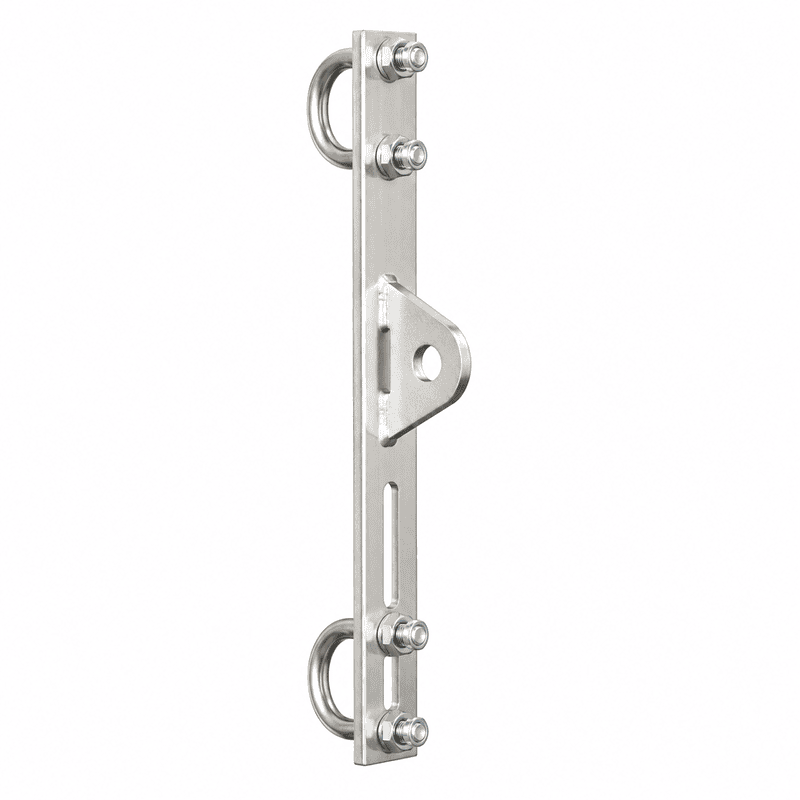

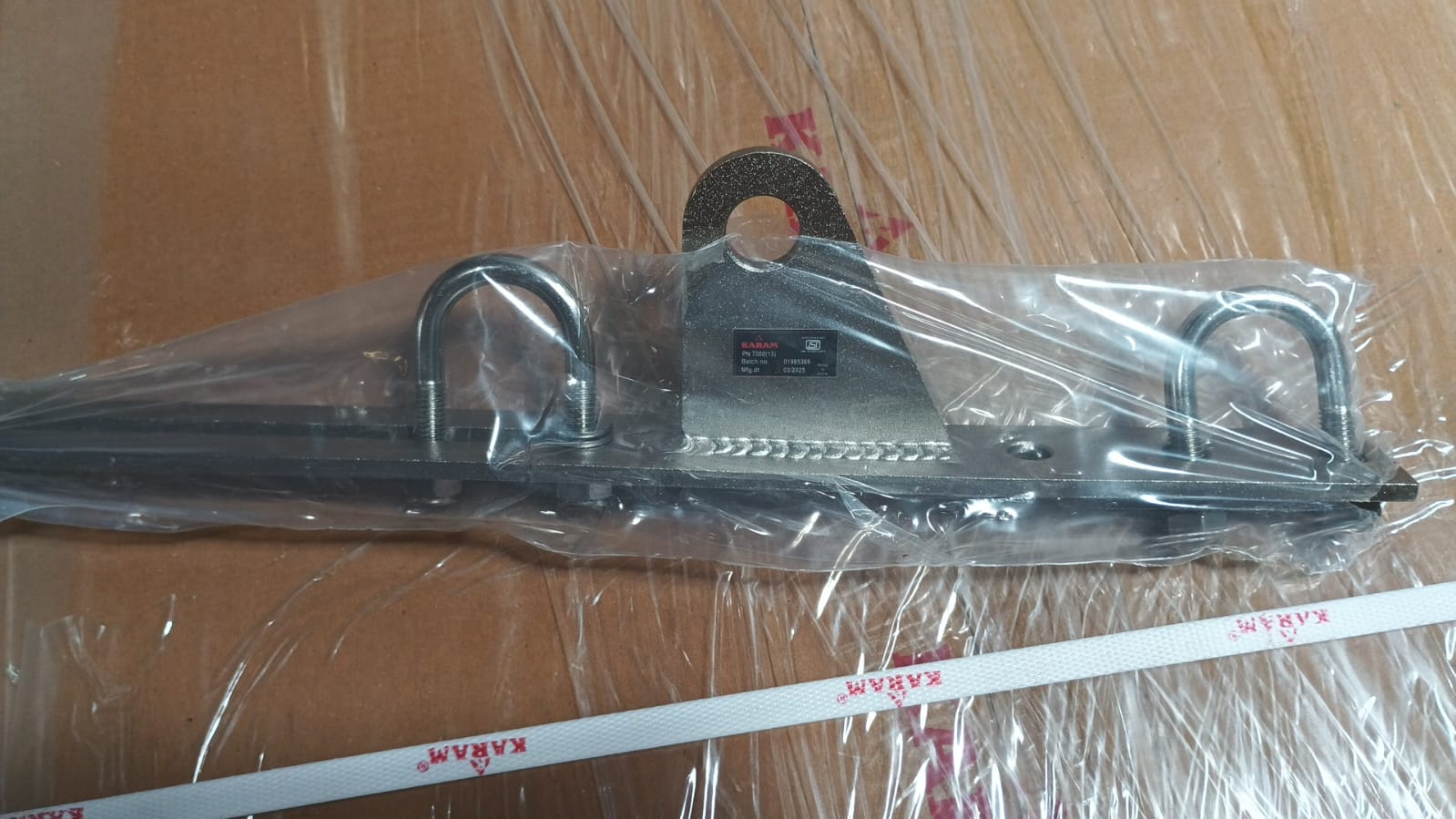

KARAM PN-7000(13) MOUNTING BRACKET--

KARAM PN-7000(13) Mounting Bracket is a robust anchorage component specially designed for use in Vertical Lifeline Systems installed on fixed ladders and elevated industrial structures. This mounting bracket is an important part of the KARAM Vertical Anchorage Line System, helping maintain the rigidity and stability of stainless steel wire rope lifelines used for fall arrest protection.

The bracket is manufactured from high-quality stainless steel and features an electro-polished finish that provides excellent resistance against corrosion, rust, and harsh environmental conditions. Its durable construction makes it suitable for long-term outdoor installations in demanding industrial environments such as telecom towers, power plants, windmills, industrial chimneys, hydroelectric installations, and construction sites.

KARAM PN-7000(13) is designed to be mounted using two ladder rungs, which improves structural strength and provides better load distribution during climbing and fall arrest situations. The mounting arrangement ensures that the vertical anchorage cable remains rigid and properly aligned throughout the climbing system.

The mounting bracket delivers a minimum breaking strength of 23 kN, offering dependable anchorage support for workers operating at height. It complies with EN 795:2012 Type A standards, ensuring reliable performance and safety compliance for industrial fall protection systems. The bracket is compatible with ladder rung diameters ranging from Ø18 mm to Ø36 mm.

Installation of the PN-7000(13) mounting bracket is simple and requires minimal effort, making it suitable for professional fixed line safety installations. KARAM fixed line systems are widely trusted for their durability, easy maintenance, and high safety standards in industrial climbing applications.
