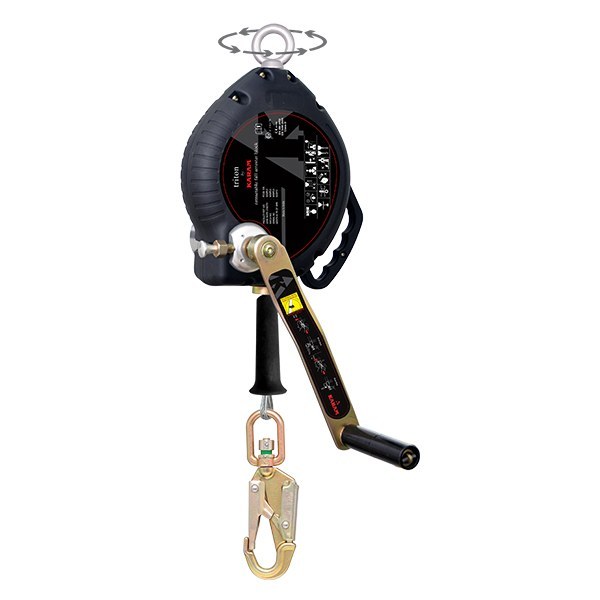

Karam PCGS10R(PN112) Retractable Block
Non-returnable
Retrieval Retractable Blocks with Galvanized Steel Wire Rope 10 Meter with Steel Snap Hook
Key Features
- Retrieval fall arrest blocks to enable easy retrieval of a victim of fall. These blocks allow the fall to arrest and also allow easy hoist of the victim with the help of their inbuilt winch mechanism when mounted on megapods, tripod, k-pod using specialized brackets, etc.
- Retractable block are designed to maintain constant tension on the lifeline, helping to minimize slack and reduce the risk of tripping or entanglement during use
- Also it's important to note that the specific features and capabilities of self-retracting lifelines may vary depending on the model, manufacturer and intended use. When electing and using an SRL, it is crucial to follow the manufacturer's instructions, conduct proper training and adhere to applicable safety standards and regulations
Certification:
EN 360:2002 and EN 1496:2017 Class B, ATEX 2014/34/EU
₹46,296.00 ₹61,314.00
Product Details
KEY FEATURES
- Has Swivel Anchorage Eye at Anchorage End.
- Swivel Steel Snap Hook with Load Indicator at Attachment End.
- Prevents Undue Twist of Rope while Working or in the Event of a Fall.
- Winch Mode Helps Easy Movement of User while Working in Confined Spaces.
- Comes in a New Stylish, Slim Polymer Casing & a Special Grip for Easy Carrying.
- Comes with Retrieval Fall Arrester Coupled with Hoist Handle that Allows Easy Hoist of the Victim.
- The Locking Pin on the Side of the Casing at the Base of the Handle Allows this Dual System to Work in Independent Fall Arrest & Winch Modes.
- Retractable Mode Enables the User to Move Freely & Arrest the User in Case the Fall Occurs, with Minimum Fall Arrest Distance & Fall Arrest Force.
PRODUCT SPECIFICATIONS
| Brand | Karam |
| Material | Hook: Alloy Steel Cable: Galvanized Steel Wire |
| Performance | Dynamic: Subjected to a Fall with a Rigid Mass of 100 kg of 600 mm, Breaking Force is Less than 6 kN, & Arrest Distance is Less than 2 m |
| Finish | Hook: Galvanized with Golden Yellow & Silver Passivation |
| Strength | Hook Breaking: 23 kN Cable Breaking: 15 kN (Min) Static: when Subjected to a Static Force of 12 kN for 3 m |
| Diameter | Rope: 4.5 mm |
| Standards | EN 360:2002 & EN 1496:2006 (Class B) |
| Item Code | PCGS 10R |
| Weight | 6.49 ± 0.10 kg Hook: 380 + 10 g |
- Comes with retractable lifeline made of galvanized steel wire rope of dia 5.0mm.
- The locking pin on the side of the casing at the base of the handle allows this dual system to work in independent fall arrest and winch modes.
- Comes with a unique hydro seepage system to drain clogged water which accumulates in the block during usage.
Warranty: 6 (Six) months from the date of invoice against any manufacturing defects.
Ideal for use
Fall Protection
Construction
Tower
Work at Height
Industrial Sites
Product Specifications
| Casing Type | Polymer casing |
| Rope Type and Dia | Galvanized steel wire rope Ø 4.5mm |
| Minimum Breaking Strength | 15kN |
| Attached Hook | Swivel hook PN162 |
| Wire Rope Length | 10.0m |
| Weight | 14.1kg |
