Karam STS01(N) SUSPENSION INTOLERANCE STRAPS
Additional information
| Brand | |
|---|---|
| Product Type | Suspension Intolerance Strap |
| Application | |
| Product Code | Mincon-Karam Suspension Intolerance Strap STS01(N) |
| Quantity Per Pack | 1 No |
| Quantity Per Carton Box | 20 |
| Packaging Details | 1 No in One Individual Box and 20 Nos in One Carton Box |
| Shipping Schedule Details | Immediate |
| GST HSN Code | 56090090 |
Available Offer
Share :

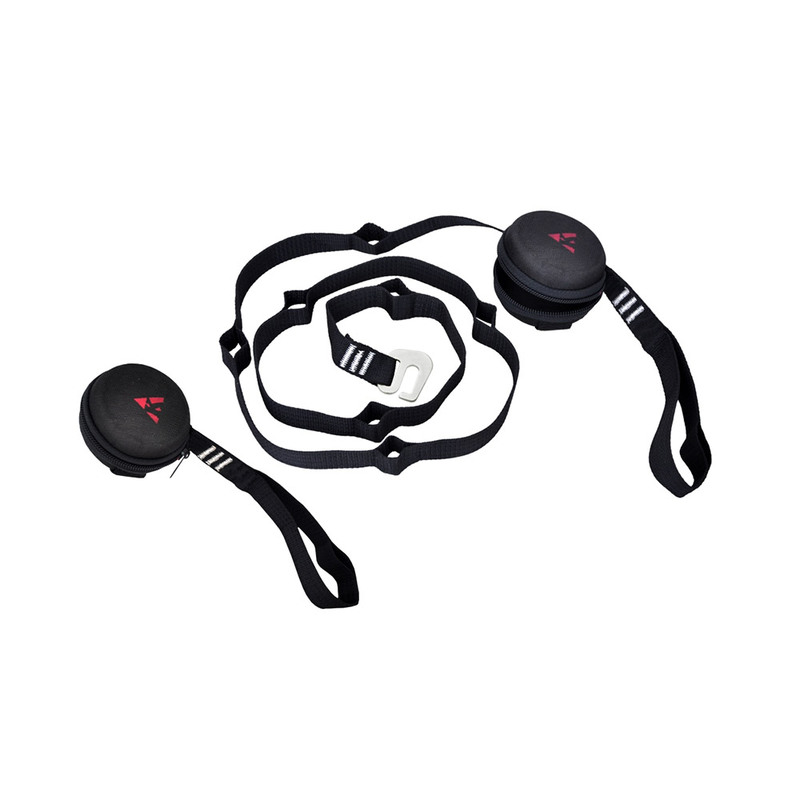

The KARAM STS01(N) Suspension Intolerance Strap is a specialized fall-protection accessory designed to help workers manage the harmful effects associated with prolonged suspension in a full-body safety harness following a fall.
Compact, lightweight and easy to attach, the STS01(N) remains fitted to the harness during normal work and can be rapidly deployed if the worker becomes suspended.
Designed for Post-Fall Suspension Relief
After a fall has been arrested, a worker may remain hanging in the full-body harness until rescue can be completed.
The STS01(N) allows the suspended worker to create a supportive loop beneath the feet. Standing in this loop can help reduce pressure from the harness leg/thigh straps and allow the worker to adopt a more supportive posture while awaiting immediate rescue.
20 mm Polyester Webbing

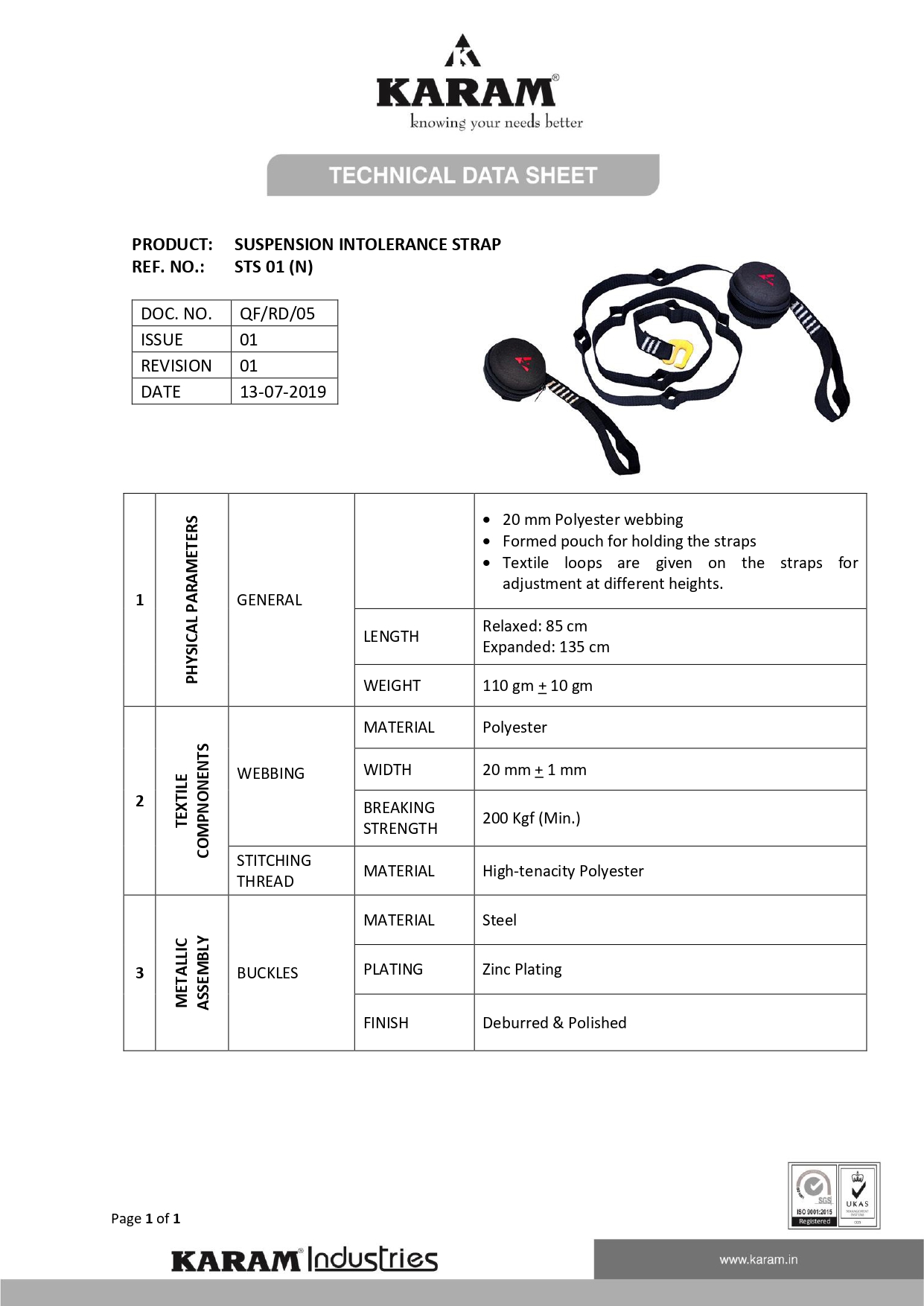

KARAM manufactures the STS01(N) using durable 20 mm polyester webbing.
The webbing has a specified:
Minimum Breaking Strength: 200 kgf
High-tenacity polyester stitching further supports durability for its intended application.
Compact Pouch Design
The Suspension Intolerance Strap is stored in a compact pouch configuration.
This keeps the webbing neatly contained during normal work and allows the strap to be carried on the harness without significantly interfering with worker movement.
When required, the worker can open the pouches and deploy the straps.
Adjustable Textile Loops
The STS01(N) incorporates adjustable textile loops.
The adjustment allows the deployed system to accommodate workers at different heights and helps the user position the foot-support loop appropriately.
Easy Harness Attachment
The STS01(N) is designed for simple attachment to a compatible full-body safety harness.
KARAM specifies the use of:
- Textile loop
- Velcro attachment
This allows the accessory to remain conveniently positioned on the harness and available when required.
Quick Emergency Deployment
In a post-fall suspension situation, the user can deploy the straps from the pouches and connect them to form a loop.
The basic sequence involves:
- Deploying the straps from the harness-mounted pouches.
- Bringing the two straps together.
- Connecting them to create a foot-support loop.
- Placing the feet into the loop.
- Standing on the loop to help relieve pressure from the thigh straps.
- Adjusting posture as appropriate while awaiting rescue.
Users should be trained in the manufacturer's complete deployment procedure before working at height.
Compact & Lightweight
The STS01(N) is specifically designed to be compact and lightweight.
This is important because the accessory is intended to remain attached to the worker's harness throughout normal work-at-height activities.
Its compact construction minimizes interference with climbing, movement and routine work.
Helps Manage Suspension Intolerance
A worker who has experienced a fall should be rescued as quickly as possible.
While awaiting rescue, the STS01(N) provides a means for the conscious suspended worker to support their feet and change loading within the harness.
This can help reduce pressure and discomfort associated with prolonged suspension.
Key Applications
The KARAM STS01(N) is suitable as a harness accessory for:
- Construction work
- Tower climbing
- Telecom towers
- Transmission structures
- Industrial maintenance
- Structural work
- Power plants
- Cement plants
- Wind and solar projects
- Plant maintenance
- Work on elevated structures
- Professional fall-arrest systems
- General work-at-height applications
