1. General Overview

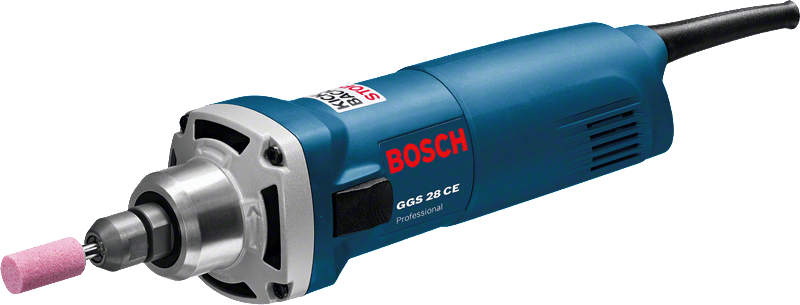

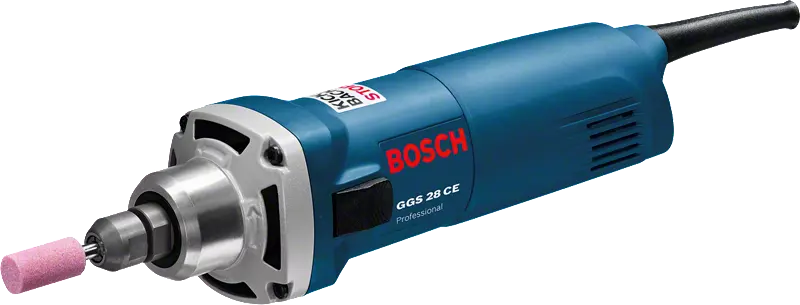

Professional corded die/straight grinder designed for heavy‑duty grinding, deburring, engraving, polishing, and weld cleaning.
Ideal for metal fabrication, automotive work, maintenance, and precise detail grinding.
⚙️ 2. Power & Performance
Motor Power: 650 W input for strong, consistent performance.
No‑load Speed: ~10,000 – 30,000 rpm for versatile grinding options.
Power Output: ~380 W.
Soft Start: Smooth startup with reduced stress on tool and operator.
🛡️ 3. Safety & Control Features
KickBack Control: Detects spindle jams and automatically shuts down the tool for enhanced user safety.
Constant Electronic: Maintains consistent speed under heavy load conditions.
Lockable Switch: For continuous operation without holding the trigger.
🧰 4. Construction & Ergonomics
Long, Slim Spindle: Great for working in tight or recessed areas where access is difficult.
Ergonomic Body: Easy handling and less operator fatigue during long jobs.
Direct Motor Cooling: Improves overload capability and tool longevity.
📏 5. Dimensions
Length: ~375 mm (overall tool body).
Height: ~75 mm (body thickness).
Width: Generally compact/slim profile for good handling (exact width ~75 mm).
⚖️ 6. Weight
Tool Weight: ~1.6 kg (lightweight for its class, reducing fatigue).
🔩 7. Collet & Grinding Capacity
Max. Collet Size: 8 mm (fits standard 8 mm tooling).
Max. Grinding Tool Diameter: ~50 mm.
Spindle Collar Diameter: ~43 mm.
📦 8. Included Accessories
Usually supplied with collet(s) and spanners (13 mm and 19 mm) for tool changes.
🛠 9. Typical Uses
Grinding weld seams.
Deburring sharp edges.
Metal surface finishing and preparation.
Polishing and engraving work where precision is needed especially in narrow spaces.
