Karam SA08 Beam Anchor
BEAM ANCHOR-ALUMINIUM & BRASS SA08

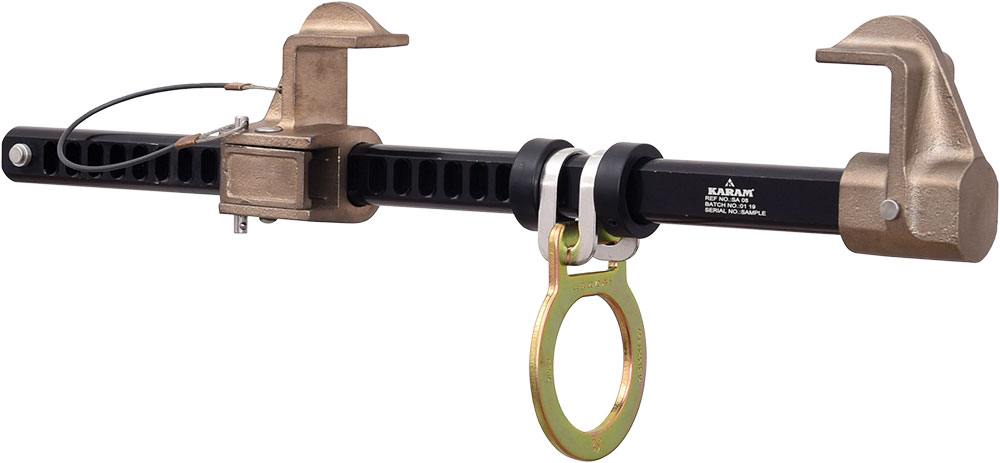

Beam Anchor
SA08- Type B Anchor
Key Features
- Is a temporary transportable anchor device, which provides an anchorage point while being attached safely onto a beam, without penetrating it
- The beam anchor arm has flanges made of brass, and is adjustable to suit different beam sizes
- Once installed, the D-ring on the aluminium bar of the beam anchor can be used for connection with a variety of connectors for suitable anchorage
Certification:
Certified to EN 795:2012 Type B and ATEX 2014/34/EU, IS 3521(Part 7):2021, SA08 is also Certified to AS/NZS 5532:2013 Conforms ANSI Z359.18-2017 Type A
₹15,405.00 ₹25,240.00
Product Details
Description
- B type anchor devices, with one or more stationary anchor points, which does not require a fixing element to be fixed to the structure. They are designed to be easily transported, as they normally require minimal installation or can be dismantled and moved quickly.
- Beam anchor designed to be easily transported, as they normally require minimal installation or can be dismantled and moved quickly.
Warranty: 1 year from the date of invoice against any manufacturing defects.
Ideal for use
Construction
Work at Height
Product Specifications
| Material | Aluminium alloy and brass |
| Minimum Breaking Strength | 23kN |
| Flange Width | 90mm to 340mm |
| Net Weight | 1.87kg ± 0.01kg |
